Windows Object Storage via MinIO Community - Update 2025

Good evening, wonderful community!

I'm not very active anymore, but you’ve always stayed close to my heart. To my fellow Windows users: I revisited some code, updated a topic from last year and completely rebuilt it for the 2025 version.

I'm talking about: https://community.veeam.com/blogs-and-podcasts-57/direct-to-windows-object-storage-on-premise-with-minio-6055

Are you still looking to test direct-to-Object Storage in an on-prem Windows Server environment? Well…

This time, I used a simple internal setup, used purely for testing and educational purposes, yet fully on-prem and Windows compatible:

Proxmox VE 8.4
Veeam Backup & Replication 12.3.2.3617
MinIO Server Community Edition 2025

Note: as before, this setup is intended strictly for internal testing and educational use.

Prepare your Object Storage Windows Server

I set up and updated a Windows Server 2025 for MinIO Community, keeping it in a Workgroup.
This time, the VM had a single disk with 100GB allocated for both the OS and data.
The latest MinIO official community edition executables for Windows (server and client) can be downloaded from:

https://min.io/open-source/download?platform=windows

I placed everything under C:\Minio\.

Before proceeding, I installed all available Windows Updates and upgraded PowerShell to the latest version on the server via:

https://github.com/PowerShell/PowerShell/releases

The powershell script

I vibe-coded a PowerShell v7 script that works OOTB, designed to run at system startup. It's placed in C:\Minio\ alongside the MinIO server and client executables. The script handles:

Relaunching itself with PowerShell 7 if executed from an older version
Starting the MinIO Server Community executable using hardcoded credentials defined at the top of the PowerShell script
Connecting the MinIO Client (mc) Community to the local server

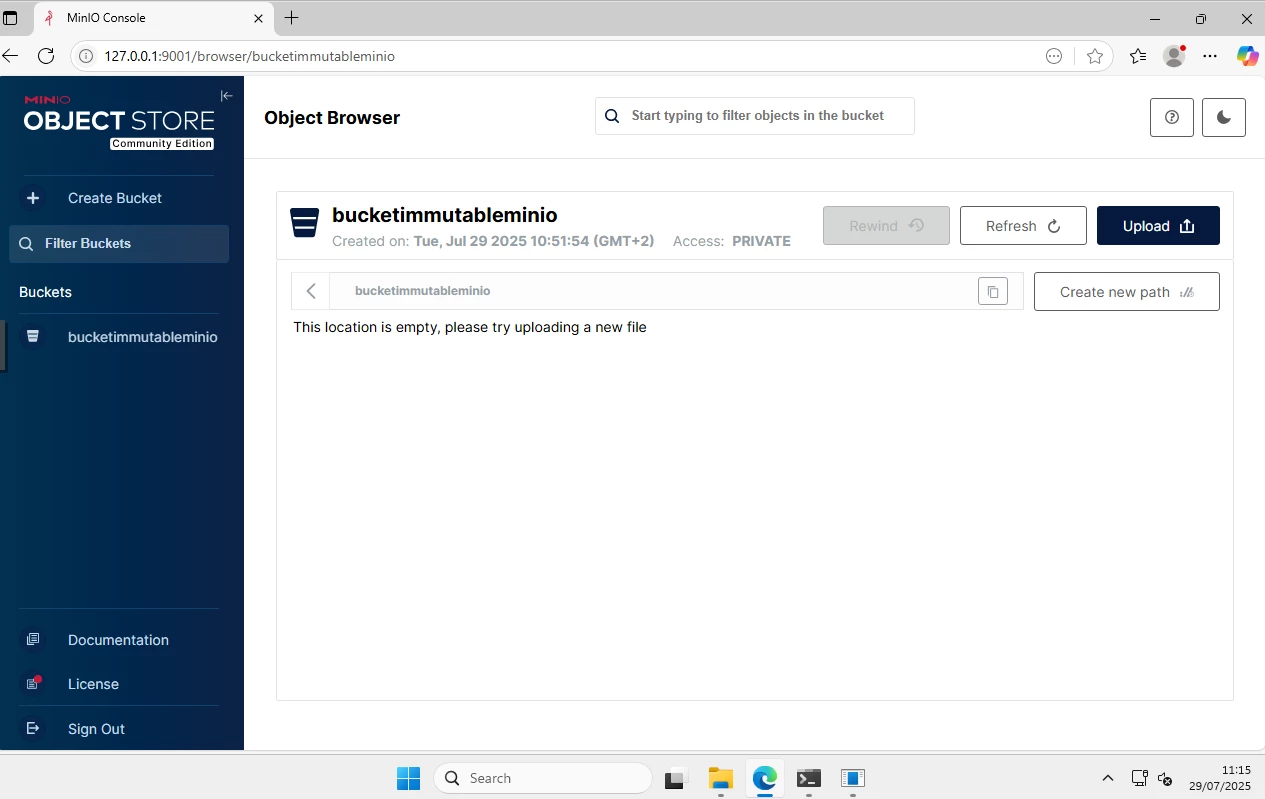

Creating a bucket and assigning it a full S3-compatible policy if it doesn't exist
Creating a limited user and assigning the policy required for Veeam integration

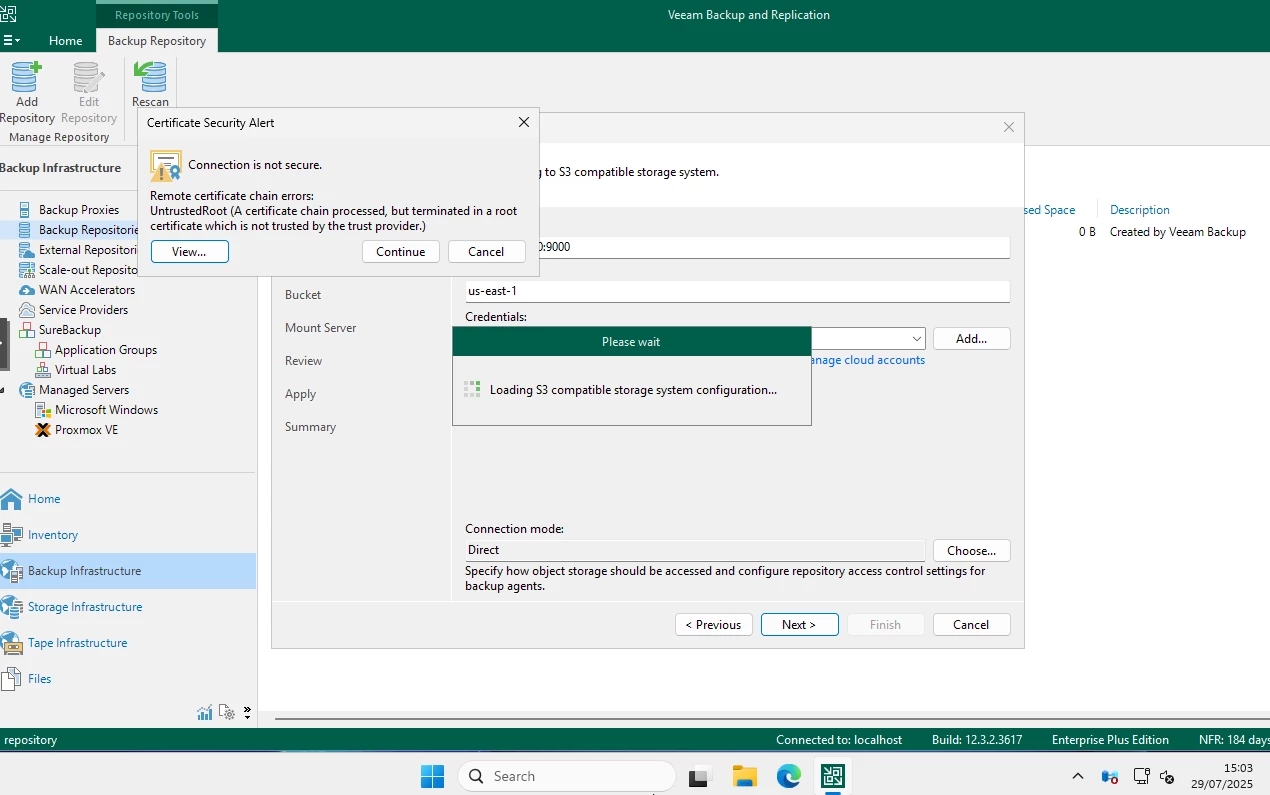

On the first run, it auto-generates a self-signed certificate stored in %USERPROFILE%\.minio\certs\

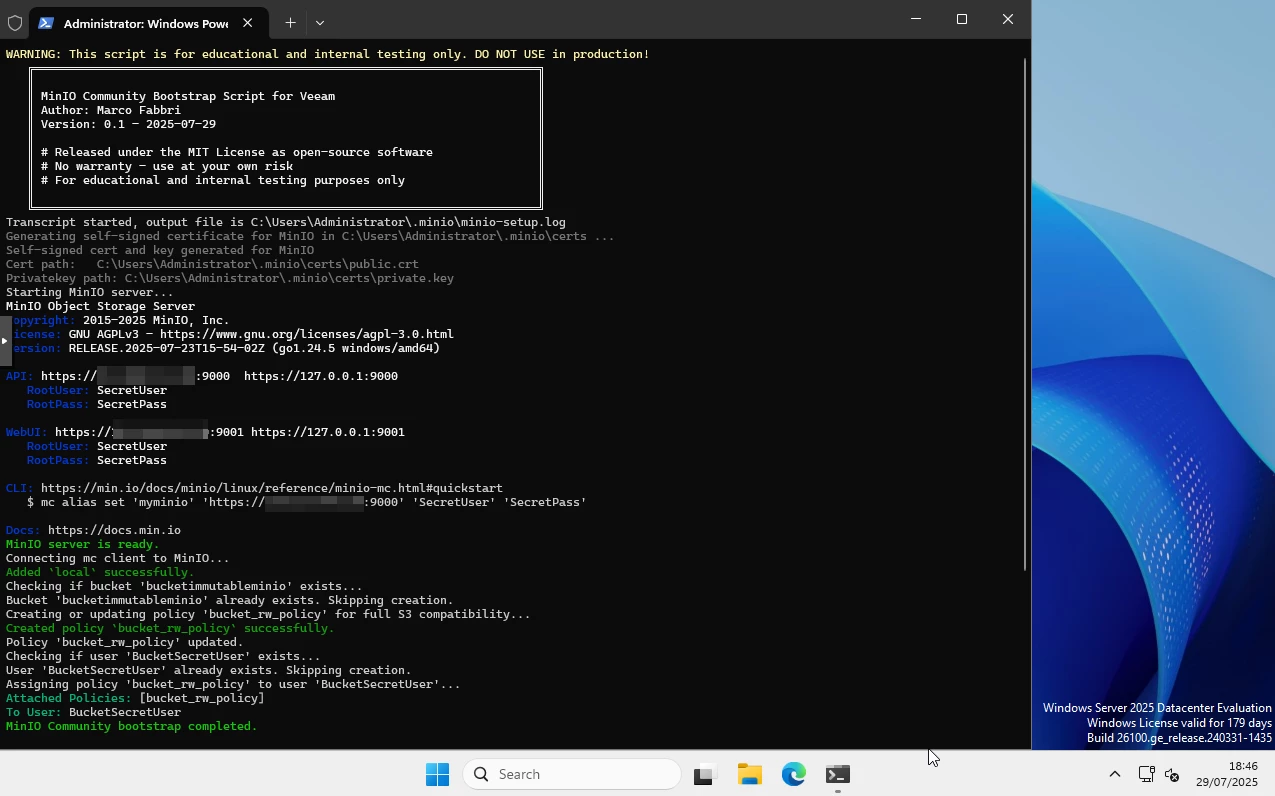

Logs everithing in %USERPROFILE%\.minio\minio-setup.log

Unlike previous setups, I deliberately avoided using Windows environment variables globally, to ensure sensitive credentials are not exposed to subprocesses and as you can see, the config parameters are clearly defined at the beginning of the script for easy customization before execution. Btw, the certificates should remain in the folder where they were generated, to ensure compatibility with MinIO Server Community.

# ========== CONFIGURATION ==========

$minioRootUser  = "SecretUser"              # CHANGE THIS
$minioRootPass  = "SecretPass"              # CHANGE THIS

$limitedUser    = "BucketSecretUser"        # CHANGE THIS
$limitedPass    = "BucketSecretPassword"    # CHANGE THIS

$bucketName     = "bucketimmutableminio"
$policyName     = "bucket_rw_policy"
$serverEndpoint = "https://localhost:9000"
$dataPath       = "C:\Data"

$CertDir        = "$env:USERPROFILE\.minio\certs"
$CN             = "minio.local"
$SANs           = @("minio", "localhost")
$pwdString      = "CertificateSecretPass"    # CHANGE THIS
$ValidYears     = 10

$MinioExe       = ".\minio.exe"
$McExe          = ".\mc.exe"
$logFile        = "$env:USERPROFILE\.minio\minio-setup.log"
$minioDir       = "$env:USERPROFILE\.minio"

# ===================================

function Start-MinIOServer {
    Write-Host "Starting MinIO server..."
    Start-Process -NoNewWindow -FilePath $MinioExe -ArgumentList "server $dataPath --console-address :9001" -Environment @{
            "MINIO_ROOT_USER"     = $minioRootUser;
            "MINIO_ROOT_PASSWORD" = $minioRootPass;
            "MINIO_ACCEPT_EULA"   = "1"
        }
    Start-Sleep -Seconds 15
}

function Connect-MinioClient {
    Write-Host "Connecting mc client to MinIO..."
    & $McExe --insecure alias set local $serverEndpoint $minioRootUser $minioRootPass
}

function Ensure-BucketExists {
    Write-Host "Checking if bucket '$bucketName' exists..."
    $bucketList = & $McExe --insecure ls local 2>$null | Out-String
    if ($bucketList -match "$bucketName/") {
        Write-Host "Bucket '$bucketName' already exists. Skipping creation."
    } else {
        Write-Host "Bucket not found. Creating bucket '$bucketName'..."
        & $McExe --insecure mb local/$bucketName --ignore-existing
    }
}

function Ensure-PolicyExists {
    Write-Host "Creating or updating policy '$policyName' for full S3 compatibility..."
    $policyJson = @"
{
  "Version": "2012-10-17",
  "Statement": e
    {
      "Effect": "Allow",
      "Action": i
        "s3:ListBucket",
        "s3:GetBucketLocation",
        "s3:CreateBucket",
        "s3:DeleteBucket",
        "s3:ListBucketMultipartUploads"
      ],
      "Resource": r
        "arn:aws:s3:::*"
      ]
    },
    {
      "Effect": "Allow",
      "Action": i
        "s3:PutObject",
        "s3:GetObject",
        "s3:DeleteObject",
        "s3:ListMultipartUploadParts",
        "s3:AbortMultipartUpload"
      ],
      "Resource": r
        "arn:aws:s3:::*/*"
      ]
    }
  ]
}
"@
    $tempFile = iSystem.IO.Path]::GetTempFileName()
    Set-Content -Path $tempFile -Value $policyJson
    & $McExe --insecure admin policy remove local $policyName 2>$null
    & $McExe --insecure admin policy create local $policyName $tempFile
    Remove-Item $tempFile -Force
    Write-Host "Policy '$policyName' updated."
}


function Ensure-LimitedUser {
    Write-Host "Checking if user '$limitedUser' exists..."
    if (-not (& $McExe --insecure admin user info local $limitedUser 2>$null)) {
        Write-Host "User not found. Creating user '$limitedUser'..."
        & $McExe --insecure admin user add local $limitedUser $limitedPass
    } else {
        Write-Host "User '$limitedUser' already exists. Skipping creation."
    }
        Write-Host "Assigning policy '$policyName' to user '$limitedUser'..."
        & $McExe --insecure admin policy attach local $policyName -u $limitedUser
}

function Wait-ForMinio {
    $uri = "https://127.0.0.1:9000/minio/health/ready"
    $maxAttempts = 60
    $attempt = 0
    while ($attempt -lt $maxAttempts) {
        try {
            $resp = Invoke-WebRequest -Uri $uri -UseBasicParsing -TimeoutSec 2 -SkipCertificateCheck
            if ($resp.StatusCode -eq 200) {
                Write-Host "MinIO server is ready." -ForegroundColor Green
                return
            }
        } catch {
            Start-Sleep -Seconds 1
            $attempt++
        }
    }
    Write-Host "ERROR: MinIO did not start in time." -ForegroundColor Red
    Stop-Transcript
    Remove-Item $logFile -Force
    exit 1
}

function Generate-MinioSelfSignedCert {
    Write-Host "Generating self-signed certificate for MinIO in $CertDir ..." -ForegroundColor DarkGray

    if (-not (Test-Path $CertDir)) { New-Item -Path $CertDir -ItemType Directory -Force | Out-Null }

    $cert = New-SelfSignedCertificate -DnsName $SANs -CertStoreLocation "Cert:\CurrentUser\My" -NotAfter (Get-Date).AddYears($ValidYears) -FriendlyName "MinIO SelfSigned" -KeyAlgorithm RSA -KeyLength 2048 -Subject "CN=$CN" -KeyExportPolicy Exportable

    $publicCrt = "$CertDir\public.crt"
    $privateKey = "$CertDir\private.key"
    $pfxFile = "$CertDir\temp-minio.pfx"

    Export-Certificate -Cert $cert -FilePath "$publicCrt.der" | Out-Null
    $raw = rSystem.IO.File]::ReadAllBytes("$publicCrt.der")
    $b64 = bConvert]::ToBase64String($raw, 'InsertLineBreaks')
    $swCrt = New-Object System.IO.StringWriter
    $swCrt.WriteLine("-----BEGIN CERTIFICATE-----")
    $swCrt.WriteLine($b64)
    $swCrt.WriteLine("-----END CERTIFICATE-----")
    /System.IO.File]::WriteAllText($publicCrt, $swCrt.ToString(), nSystem.Text.Encoding]::ASCII)
    Remove-Item "$publicCrt.der" -Force

    Export-PfxCertificate -Cert $cert -FilePath $pfxFile -Password (ConvertTo-SecureString -String $pwdString -Force -AsPlainText) | Out-Null
    $pfxFlags = aSystem.Security.Cryptography.X509Certificates.X509KeyStorageFlags]::Exportable -bor  System.Security.Cryptography.X509Certificates.X509KeyStorageFlags]::PersistKeySet
    $pfx = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2($pfxFile, $pwdString, $pfxFlags)

    if ($pfx.HasPrivateKey) {
        $rsa = rSystem.Security.Cryptography.X509Certificates.RSACertificateExtensions]::GetRSAPrivateKey($pfx)
    } else {
        throw "ERROR: No private key found in the certificate."
    }

    $swKey = New-Object System.IO.StringWriter
    $swKey.WriteLine("-----BEGIN PRIVATE KEY-----")
    $swKey.WriteLine(eConvert]::ToBase64String($rsa.ExportPkcs8PrivateKey(), 'InsertLineBreaks'))
    $swKey.WriteLine("-----END PRIVATE KEY-----")
    $content = $swKey.ToString() -replace "`r`n","`n"
    /System.IO.File]::WriteAllText($privateKey, $content, tSystem.Text.Encoding]::ASCII)


    Remove-Item $pfxFile -Force

    if (-not (Test-Path $privateKey) -or (Get-Content $privateKey | Select-String "PRIVATE KEY" -Quiet) -eq $false) {
        throw "Private key PEM file generation failed!"
    }
    if (-not (Test-Path $publicCrt) -or (Get-Content $publicCrt | Select-String "BEGIN CERTIFICATE" -Quiet) -eq $false) {
        throw "Certificate PEM file generation failed!"
    }

    Write-Host "Self-signed cert and key generated for MinIO" -ForegroundColor DarkGray
    Write-Host "Cert path:   $publicCrt" -ForegroundColor DarkGray
    Write-Host "Privatekey path: $privateKey" -ForegroundColor DarkGray
}

Clear-Host

Write-Host "WARNING: This script is for educational and internal testing only. DO NOT USE in production!" -ForegroundColor Yellow
Write-Host @"
   ╔════════════════════════════════════════════════════════════════════════╗
   ║                                                                        ║
   ║ MinIO Community Bootstrap Script for Veeam                             ║
   ║ Author: Marco Fabbri                                                   ║
   ║ https://www.linkedin.com/in/marco-fabbri-it/                           ║
   ║ Version: 0.1 - 2025-07-29                                              ║
   ║                                                                        ║
   ║ # Released under the MIT License as open-source software               ║
   ║ # No warranty - use at your own risk                                   ║
   ║ # For educational and internal testing purposes only                   ║
   ║                                                                        ║
   ╚════════════════════════════════════════════════════════════════════════╝
"@ -ForegroundColor White

if ($PSVersionTable.PSVersion.Major -lt 7) {
    Write-Host "Detected Windows PowerShell 5.x. Relaunching in PowerShell 7 (pwsh)..." -ForegroundColor Yellow
    $pwsh = (Get-Command pwsh.exe -ErrorAction SilentlyContinue).Source
    if (-not $pwsh) {
        Write-Host "  ERROR: PowerShell 7 (pwsh) not found. Please install it first." -ForegroundColor Red
        Write-Host "  https://github.com/PowerShell/PowerShell" -ForegroundColor Red
        exit 1
    }
    $argList = @()
    if ($MyInvocation.UnboundArguments.Count -gt 0) {
        $argList += $MyInvocation.UnboundArguments
    }
    & $pwsh -NoProfile -ExecutionPolicy Bypass -File $MyInvocation.MyCommand.Path @argList
    exit $LASTEXITCODE
}

# Check files and start log

if (-not (Test-Path $MinioExe)) {
    Write-Host "ERROR: minio.exe not found in $MinioExe" -ForegroundColor Red
    exit 1
}
if (-not (Test-Path $McExe)) {
    Write-Host "ERROR: mc.exe not found in $McExe" -ForegroundColor Red
    exit 1
}

if (-not (Test-Path $minioDir)) {
    Start-Transcript -Path $logFile -Append -Force
    Generate-MinioSelfSignedCert
} else{
    Start-Transcript -Path $logFile -Append -Force
    Write-Host "$minioDir already exist! Starting MinIO server..." -ForegroundColor Green
}

Start-MinIOServer
Wait-ForMinio
Connect-MinioClient
Ensure-BucketExists
Ensure-PolicyExists
Ensure-LimitedUser

Write-Host "MinIO Community bootstrap completed." -ForegroundColor Green
Stop-Transcript

if ($Host.Name -notmatch "ConsoleHost") {
    powershell
}
