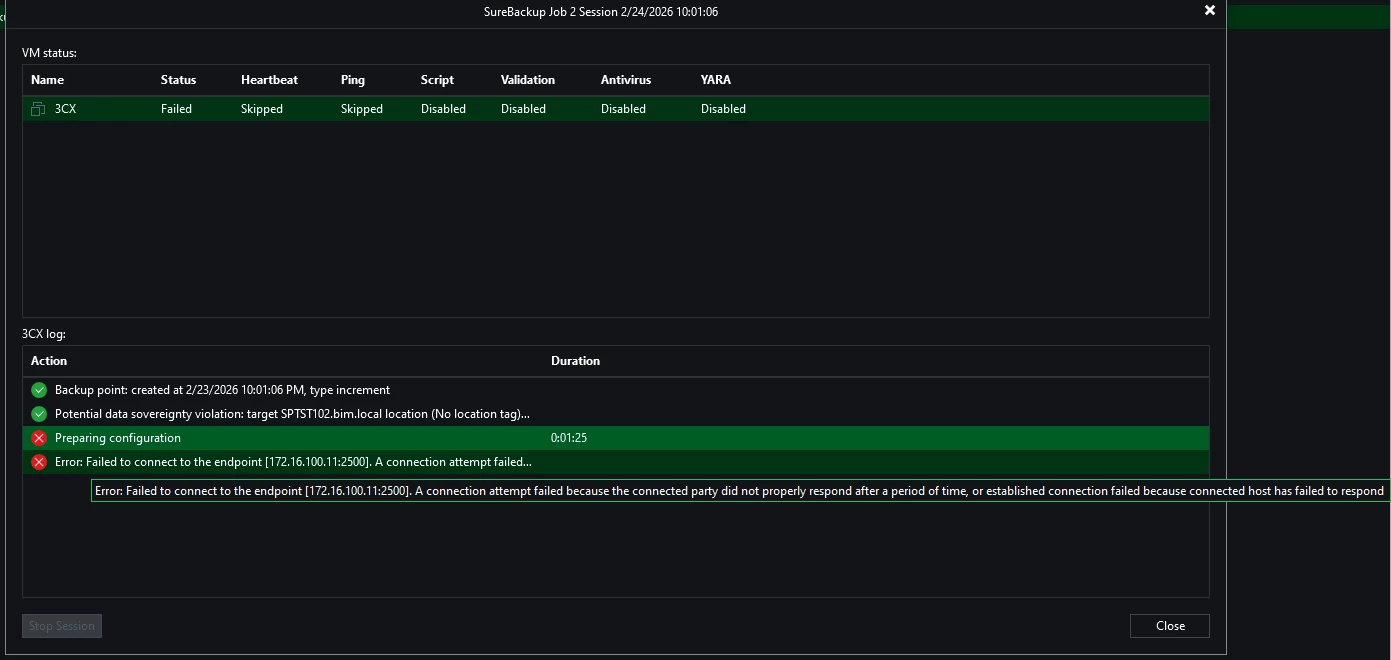

SureBackup Configuration Problem

Hi ​@NemanjaJanicic ,

Have you verified whether the hypervisor is able to connect to the repository? It uses the same mechanism as Instant Recovery, meaning the repository is mounted directly to the hypervisor so it can start the VMs from it.

Have you also checked your firewall to confirm which system is attempting to connect to this IP?

If you’re unable to identify the issue, it might be a good idea to open a support case.

Hi ​@NemanjaJanicic

Try configure on veeam server  “Preferred Networks”

• Enter the subnet for your Management network (e.g., 192.168.10.0/24).

• Ensure the checkbox "Allow backup traffic over these networks only" is checked if you want to strictly prevent it from ever touching the 172.x.x.x range.

• Move this network to the top of the list.

Unregister DNS on NIC ISCSI

• Right-click the iSCSI NIC > Properties > IPv4 > Advanced > DNS tab.

• Uncheck "Register this connection's addresses in DNS".

Veeam sometimes caches the IP list for a managed server.

Right-click your Repository server > Properties.
In the Name field, ensure you are using the FQDN or the Management IP (192.168.10.191), not a generic NetBIOS name that might resolve inconsistently.

Click through the wizard to the end. This triggers a "Discovery" process that updates the IP list Veeam holds in its configuration database.

Set NIC Management to 10 and iSCSI to 500

Hey ​@Link State,

Already checked that before created this topic. Issue persist after those checks

Hi ​@NemanjaJanicic   Try adding a static route for the SCSCI network, assigning it the GW.

route add -p  192.168.10.xxx mask “your mask”     “Your GW ip”

I resolve the issue, thank’s ​@Link State  and ​@CMF  for reaching out to help.
At the end it was Firewall policies problem, the communication between VLANs were not properly configured.



Great news ​@NemanjaJanicic . Hope everything is working fine now.

Regards

Chalid
