Boosting Resilience in Bare-Metal Active Active Clusters: 4 and 5 Node Control Plane Architecture (4.17 ⬆ Version)

Organizations running active-active deployments across two locations—especially those hosting stateful workloads like OpenShift Virtualization VMs that run only a single instance—depend heavily on the underlying infrastructure to guarantee availability.
While traditional virtualization platforms handle this natively, running these workloads on OpenShift bare metal introduces new architectural considerations.

The Challenge: What Happens When the Primary Site Fails? ⚠️

In typical stretched OpenShift clusters, the control plane is often deployed in a 2+1 or 1+1+1 topology.
But if the data center hosting the majority of control-plane nodes goes down:

• The surviving control-plane node becomes the only source of truth for the cluster.

• That single node must switch to read-write mode and act as the exclusive etcd copy.

• If that node fails… recovery becomes catastrophic, especially when running stateful VMs.

This risk becomes even more critical in environments leveraging OpenShift Virtualization for production workloads.

The Solution: 4-Node and 5-Node Control Plane for Stretched Clusters 🚀

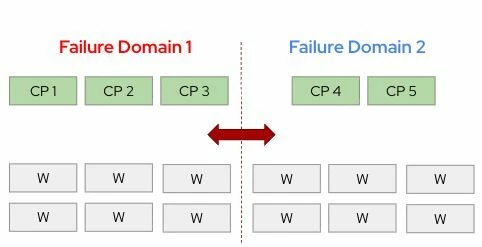

To increase resiliency during data-center-level failures, OpenShift can leverage 4-node or 5-node control-plane deployments, such as:

• 2+2

• 3+2

With these designs, even if an entire site is lost, the remaining location still retains two read-only copies of etcd, significantly boosting cluster recoverability and reducing the risk of losing quorum.

Today, the cluster-etcd-operator already supports up to five etcd members, automatically scaling in environments using MachineSets.
But in bare-metal or agent-based installations, MachineSets are not available—meaning the operator won't scale automatically but will adjust etcd peers when control-plane nodes are added manually.

This is exactly the workflow we aim to validate and officially support.

🔧 Note: This capability is specifically targeted at bare-metal clusters, with a strong focus on OpenShift Virtualization use cases.

Goals 🎯

Validate and support 4-node and 5-node control-plane architectures for bare-metal stretched clusters, under the following constraints:

• Bare-metal control-plane nodes

• Installed via Assisted Installer or Agent-based Installer

• Shared Layer 3 network across locations

• Latency < 10 ms between all control-plane nodes

• Minimum 10 Gbps bandwidth

• etcd stored on SSD or NVMe

Acceptance Criteria ✔️

📌 Performance

Control plane performance and scalability must show less than 10% degradation when compared to standard HA clusters.

📌 Recovery Procedures

Documentation must be validated and updated for manual control-plane recovery in cases of quorum loss.
