Hi All,I can share my As-Build Report Veeam guide for an easy installation and a good results 😁 ! Sources:https://github.com/AsBuiltReport/AsBuiltReport.Veeam.VBRhttps://github.com/AsBuiltReport/AsBuiltReport.Corehttps://www.asbuiltreport.com/user-guide/new-asbuiltreport/https://techmyth.info/posts/homelab-veeam-vbr-doc-with-asbuiltreport/ Veeam Server License requirements: Community edition will not be supported.Needed installed: Veeam Backup Console installed with same version of Veeam server Installation steps from PS admin shell:PS> Get-Module -Name Veeam.Backup.PowerShell -ListAvailable PS> Install-Module PScriboChartsPS> Import-Module PScriboCharts PS> Find-Module -Name AsBuiltReport.* -Repository PSGalleryPS> Install-Module -Name 'AsBuiltReport.Core' -Repository 'PSGallery' -Scope 'CurrentUser'PS> $env:PSModulePathPS> $path = (Get-Module -Name AsBuiltReport.Core -ListAvailable).ModuleBase; Unblock-File -Path $path\*.psd1; Unblock-File -Path $path\Src\Public\*.ps1Verify if PS Veeam module is installed:PS> Get-Module -Name Veeam.Backup.PowerShell -ListAvailablePS> Install-Module -Name AsBuiltReport.Veeam.VBRPS> Get-Module -ListAvailable -Name @(‘Veeam.Backup.PowerShell’,‘AsBuiltReport.Veeam.VBR’,‘AsBuiltReport.Core’)Attending result: Configure report options for use with -Verbose option to Allows you to set the technical parameters of the report, such as the type of data collected:PS> New-AsBuiltReportConfig Veeam.VBR -FolderPath C:\VeeamReportsAfter confirm message, you can change name to CustomReportConf.jsonNow you can edit custom report .json file. Default configuration for Veeam server joined into domain is:When the Veeam Server are In Workgroup need edit .json file and change with:Now we are ready to execute Report command from Veeam Backup Console, PowerShell Console: PS command line for Veeam server in Workgroup (change red text): New-AsBuiltReport -Report Veeam.VBR -Target 192.168.1.2 -Username 192.168.1.2\administrator -Password P@ssw0rd -Format Html,Word -OutputFolderPath 'C:\VeeamReports' -ReportConfigFilePath C:\VeeamReports\CustomReportConf.json -Verbose PS command line for Veeam server joined to AD domain (change red text): New-AsBuiltReport -Report Veeam.VBR -Target veeam-vbr.contoso.local -Username contoso\veeam_admin -Password P@ssw0rd -Format Html,Word -OutputFolderPath C:\VeeamReports This command line create 2 reports in Word and HTML format.Enjoy Veeam reports !

+21

Chris.Childerhose
Veeam Legend, Veeam Vanguard
Forum|Forum|17 days ago
January 26, 2026

Ok. Maybe @jcolonfzenpr can chime in here then.

Like

J

jcolonfzenpr
Forum|Forum|16 days ago
January 27, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Like

B

bastiand
New Here
Forum|Forum|14 days ago
January 29, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Like

+21

Chris.Childerhose
Veeam Legend, Veeam Vanguard
Forum|Forum|14 days ago
January 29, 2026

@jcolonfzenpr 👆

Like

J

jcolonfzenpr
Forum|Forum|14 days ago
January 29, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Can you update to the latest release?

Update-Module AsBuiltReport.Veeam.VBR -Force

Then restart the PowerShell console and try generating the report again.

Let us know the results.

Thank you.

Like

B

bastiand
New Here
Forum|Forum|14 days ago
January 29, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

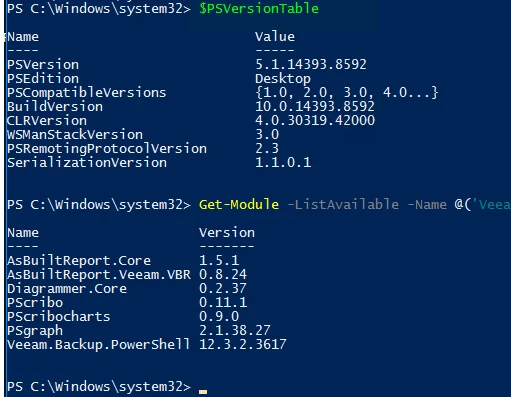

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Can you update to the latest release?

Update-Module AsBuiltReport.Veeam.VBR -Force

Then restart the PowerShell console and try generating the report again.

Let us know the results.

Thank you.

We cannot directly update the module because the server has not internet access. What ist the release number of the latest module? Where can i download it?

Like

+21

Chris.Childerhose
Veeam Legend, Veeam Vanguard
Forum|Forum|14 days ago
January 29, 2026

Check here for download - AsBuiltReport/AsBuiltReport.Veeam.VBR: Repository for AsBuiltReport Veeam Backup & Replication module

Like

J

jcolonfzenpr
Forum|Forum|14 days ago
January 29, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Can you update to the latest release?

Update-Module AsBuiltReport.Veeam.VBR -Force

Then restart the PowerShell console and try generating the report again.

Let us know the results.

Thank you.

We cannot directly update the module because the server has not internet access. What ist the release number of the latest module? Where can i download it?

v0.8.25 is the latest. Make sure you delete the old v0.8.24 before installing the new one.

Next follow the manual install method 😉

https://github.com/AsBuiltReport/AsBuiltReport.Veeam.VBR?tab=readme-ov-file#github

Like

J

jcolonfzenpr
Forum|Forum|14 days ago
January 29, 2026

Since I don't monitor this community frequently, this is the last time I will answer questions about the report. From now on, all issues must be reported through the GitHub issue platform.

https://github.com/AsBuiltReport/AsBuiltReport.Veeam.VBR/issues

Like

+5

damien commenge
Veeam Legend
Forum|Forum|9 days ago
February 3, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Can you update to the latest release?

Update-Module AsBuiltReport.Veeam.VBR -Force

Then restart the PowerShell console and try generating the report again.

Let us know the results.

Thank you.

We cannot directly update the module because the server has not internet access. What ist the release number of the latest module? Where can i download it?

Hello,

Yes, you were true on last page, it’s not working because you make the hardening recommendation.

This one specialy : Disable WinRM.

If you want to be able to not have any error, you need to use these cmdlet line :

Set-Service -Name WinRM -StartupType Automatic
Start-Service -Name WinRM

Then you can harden again the server with :

Set-Service -Name WinRM -StartupType Disabled
Stop-Service -Name WinRM

Keep learning day after day

Like

B

bastiand
New Here
Forum|Forum|8 days ago
February 4, 2026

Hello, I have been trying to generate a report with the current modules for quite some time, but I always get the following warnings:

WARNUNG: [ 15:52:57:572 ] [ Document ] - Unable to export the Infrastructure Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:15:878 ] [ Document ] - Backup Server Section: New-CimSession: Unable to connect to HRESULT 0x8007051f
WARNUNG: [ 15:53:15:909 ] [ Document ] - Backup Server Section: New-PSSession: Unable to connect to AuthenticationFailed,PSSessionOpenFailed
WARNUNG: [ 15:53:15:988 ] [ Document ] - Backup Server Section: Unable to get Backup Server information: WinRM disabled or not configured on
WARNUNG: [ 15:53:20:941 ] [ Document ] - Unable to export the vSphereProxy Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:22:894 ] [ Document ] - Unable to export the Repository Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:53:23:410 ] [ Document ] - Unable to export the Sobr Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:57:50:186 ] [ Document ] - Unable to export the Tape Diagram: No Backup Server Information available to diagram
WARNUNG: [ 15:58:17:860 ] [ Document ] - Unable to export the ProtectedGroup Diagram: No Backup Server Information available to diagram

Can anyone explain to me why this is happening or why these messages are appearing?

Thanks Bastian

Can you share the result of the following cmdlet?

$PSVersionTable

Get-Module -ListAvailable -Name @('Veeam.Backup.PowerShell','PScribo', 'PScriboCharts', 'AsBuiltReport.Core', 'AsBuiltReport.Veeam.VBR', 'Veeam.Diagrammer', 'Diagrammer.Core', 'PSGraph') | select-object -Property Name, Version | Format-Table -AutoSize

Can you update to the latest release?

Update-Module AsBuiltReport.Veeam.VBR -Force

Then restart the PowerShell console and try generating the report again.

Let us know the results.

Thank you.

We cannot directly update the module because the server has not internet access. What ist the release number of the latest module? Where can i download it?

Hello,

Yes, you were true on last page, it’s not working because you make the hardening recommendation.

This one specialy : Disable WinRM.

If you want to be able to not have any error, you need to use these cmdlet line :

Set-Service -Name WinRM -StartupType Automatic
Start-Service -Name WinRM

Then you can harden again the server with :

Set-Service -Name WinRM -StartupType Disabled
Stop-Service -Name WinRM

Hello, the WinRM service was started. After the last module update, the report results were satisfactory.

Like

+21

Chris.Childerhose
Veeam Legend, Veeam Vanguard
Forum|Forum|8 days ago
February 4, 2026

Great to hear after the update things worked.
