Solved

Virtual lab supports maximum of 9 networks


De Cock
Forum|alt.badge.img

Hi All,

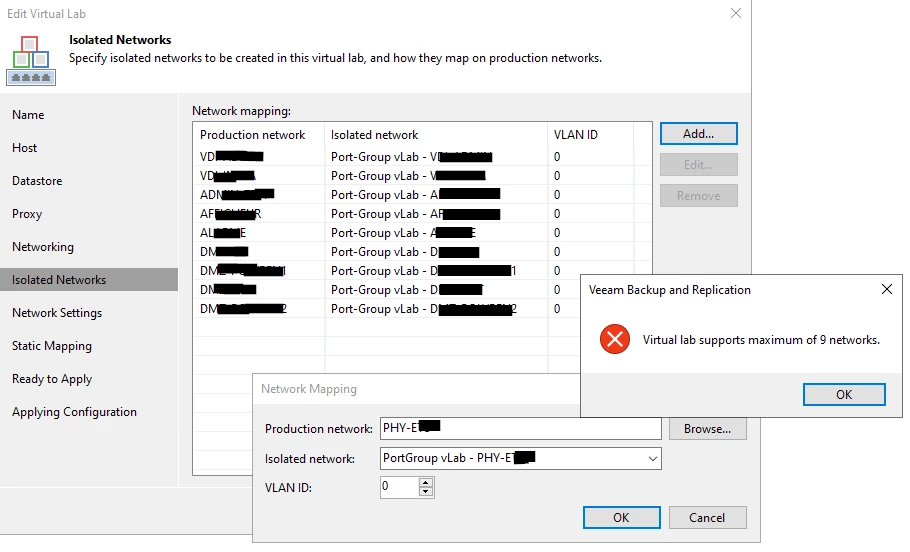

Last week on the VUG Belux event I brought up the Virtual lab supports maximum of 9 networks.
For Surebackup. What is also described in this kb
https://www.veeam.com/kb4353
There they state there is no way to bypass this limit.
On the location somebody told there is via Powershell.
Do we have an example of this and is it then also shown in the GUI?

Thanks,
Benny

Best answer by MicoolPaul

Hi, the 10 vNIC limit is on VMware due to vSphere limitations: VMware Configuration Maximum tool



I’m not aware of any PowerShell that would leave you in a supported state and also exceeding the maximum number of vNICs supported by VMware.



Hyper-V does not have the same limitations, instead from Windows Server 2019 it’s up to 68: Plan for Hyper-V scalability in Windows Server | Microsoft Learn

View original
Did this topic help you find an answer to your question?

7 comments

  • New Here
  • 1 comment
  • December 19, 2023

Hi,

That must be specific for VMware.

I have a customer where I created a Virtual Lab with almost 30 networks on a Hyper-V environment.

Created them in the GUI with no errors.

Virtual lab has all the isolated NICs

The only thing I had to do, was adding extra RAM and CPU on the Virtual Lab, otherwise it would not boot...


MicoolPaul
Forum|alt.badge.img+22
  • 2338 comments
  • Answer
  • December 19, 2023

Hi, the 10 vNIC limit is on VMware due to vSphere limitations: VMware Configuration Maximum tool



I’m not aware of any PowerShell that would leave you in a supported state and also exceeding the maximum number of vNICs supported by VMware.



Hyper-V does not have the same limitations, instead from Windows Server 2019 it’s up to 68: Plan for Hyper-V scalability in Windows Server | Microsoft Learn


Link State
Forum|alt.badge.img+10
  • Veeam Legend
  • 577 comments
  • December 19, 2023

Strange this time Hyperv outperforms Vmware ðŸ˜œ


kristofpoppe
Forum|alt.badge.img+9
  • Veeam Vanguard
  • 110 comments
  • December 19, 2023

@De Cock



I’ll put @jos.maliepaard in this conversation. He was the person who said you could exceed this limit using commandline. But as @MicoolPaul mentioned, it seems to be a VMWare limitation, so I’m afraid if Veeam could exceed this.


De Cock
Forum|alt.badge.img
  • Author
  • Comes here often
  • 11 comments
  • January 4, 2024

Thanks @kristofpoppe. Yes I agree I believe this is a VMware limitation and it was a mix up with Hyper-V
where this limitation is different.


jos.maliepaard
Forum|alt.badge.img+7
  • Veeam Vanguard
  • 76 comments
  • January 15, 2024

Indeed the hypervisor was Hyper-V in this case. Sorry for the inconvenience from my side.


jos.maliepaard
Forum|alt.badge.img+7
  • Veeam Vanguard
  • 76 comments
  • February 6, 2024

We worked on another case on VMware. We did choose for VLAN mapping, then there is not a limitation of 10 networks.

let me know if this works for you
